GDT's wall-mounted touchscreen all in one computers,designed with true flat, multi-touch ITO evolution capacitive touch technology, which are well-suited for stand kiosk, wall mounted advertising kiosks. Available in standard sizes in ranging form 21.5 to 65 inches.
| Diagonal Size | 21.5-Inch | 24-Inch | 27-Inch | 32-Inch | 43-Inch | 55-Inch | 65-Inch |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Resolution | 1920 x1080 | 1920 x1080 | 1920 x1080 | 1280x1024 | 1920x1080 | 3840x2160 | 3840*2160 |
| Brightness | 250nits | 300nits | 250nits | 300nits | 250nits | 400nits | 350nits |
| Contrast Ratio | 3000:1 | 3000:1 | 3000:1 | 3000:1 | 4000:1 | 4000:1 | 1200:1 |
| Number of Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Active Area | 18.74"x10.54" | 23.54"x13.24" | 23.54"x13.24" | 27.49"x15.47" | 36.98"x20.80" | 47.54"x26.74" | 56.24"x31.63" |
| Touch Panel | Touch Technology | ITO Two-glass Projected Capacitive Multi-Touch | |||||
| Number of Touches | Multi Touch | ||||||
| Touch Lifetime | >300,000,000 times | ||||||
| Input Methods | Finger, Stylus | ||||||
| Touch response time | 25ms | ||||||
| Calibration | Requires no software | ||||||
| Cover Glass Surface Treatment | AG/AF/AR | ||||||
| Working Input Voltage | 5V,DC | ||||||
| SYSTEM PARAMETERS | CPU | Intel i3-8100, 3.6GHZ | |||||
| Mother Board | ITX-H310D4 (have Intel H310 Chip-set) | ||||||
| Frequency | 3.6GHZ | ||||||
| Number of Cores | 4-core | ||||||
| Memory RAM | 8GB | ||||||
| Hard Disk ROM | 120GB SSD | ||||||
| Architecture | 64 bit | ||||||
| Camera | Five megapixels | ||||||
| Operating System | Windows 10 in English (pre-install) | ||||||
| I/O Port | WIFI | Built-in 802.11n WLAN card，6DB antenna | |||||
| HDMI Port | 1 | ||||||
| VGA Port | 1 | ||||||
| RJ45 Port | 2 | ||||||
| USB 3.0 Port | 2 | ||||||
| Audio Input | Yes (3.5mm Stereo jack 1 port) | ||||||
| Speaker | 10W * 2 | ||||||
| Power Input | Built-in AC 110-240V, 50/60H | ||||||
| MTBF | 50,000 hours demonstrated | ||||||
| Input Voltage | 12VDC +/- 5% , 100-240VAC, 50/60Hz | ||||||
| Mounting Options | VESA hole Mount per MIS-F | ||||||
| Operating Temp. | 0° C to 40° C / 32°F to 104°F | ||||||
| Storage Temp. | -20°C to 50°C / -4°F to 122°F | ||||||
| Anti-Vibration | 5-19Hz/1.0mm Vibration; 19-200Hz/ 1.0g accelerated velocity | ||||||
| Warranty | 1-Year | ||||||
Available in standard sizes are 21.5",24", 27",32",43",55",65", and custom options up to 75inches.
Flexibility for Your Install

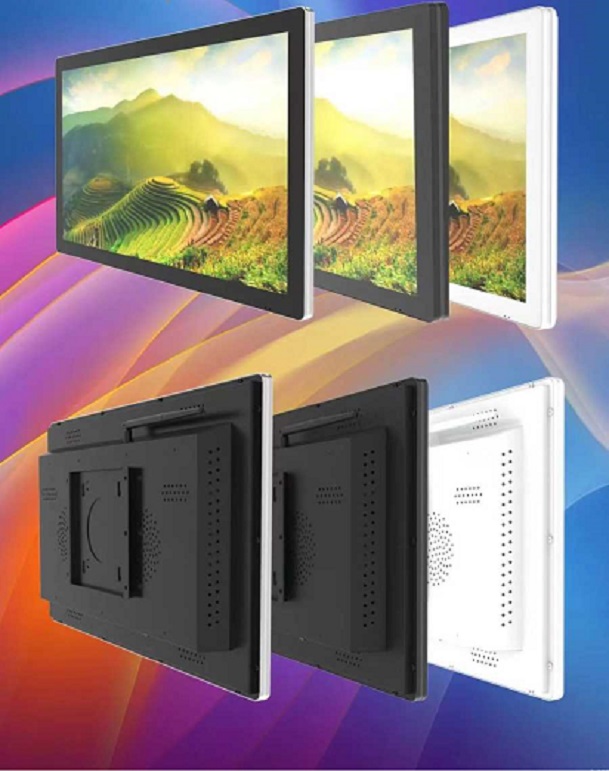

Our commercial touchscreen computers can be mounted in landscape and portrait, providing optimal flexibility for your installing to a wall, in a kiosk.
| COMPUTER CONFIGURATION OPTIONS | |||||||
| OPS | i3 Configuration | i5 Configuration | i7 Configuration | ||||
| Chipset | Intel Chip | Intel Chip | Intel Chip | ||||
| CPU | Inter Core i3 | Inter Core i5 | Inter Core i7 | ||||
| RAM | 4GB/8GB | 4GB/8GB | 4GB/8GB | ||||
| ROM | 128GB256GB/515GB Hard Disk | 128GB256GB/515GB Hard Disk | 128GB256GB/515GB Hard Disk | ||||

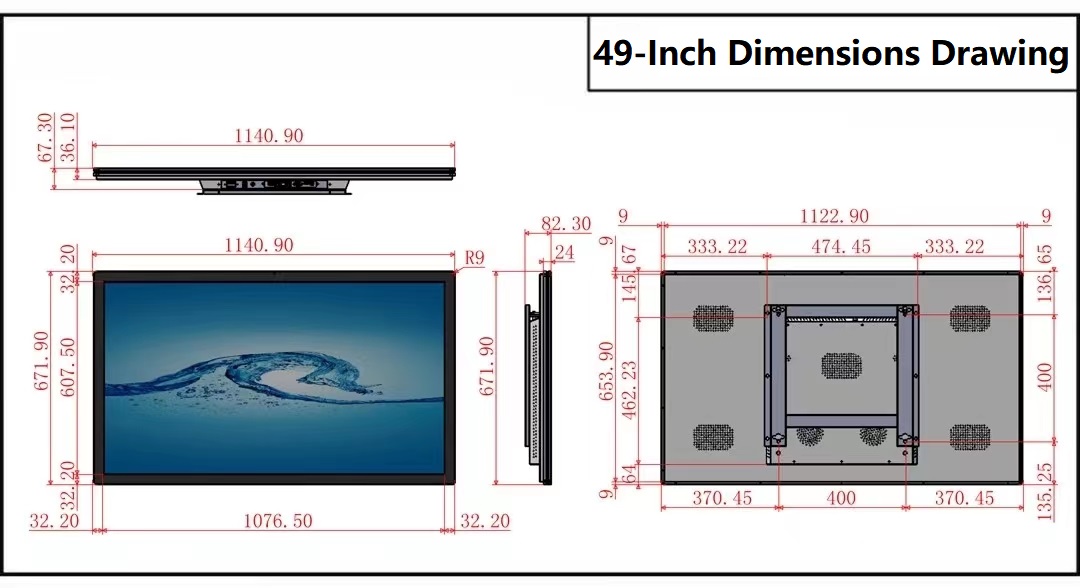

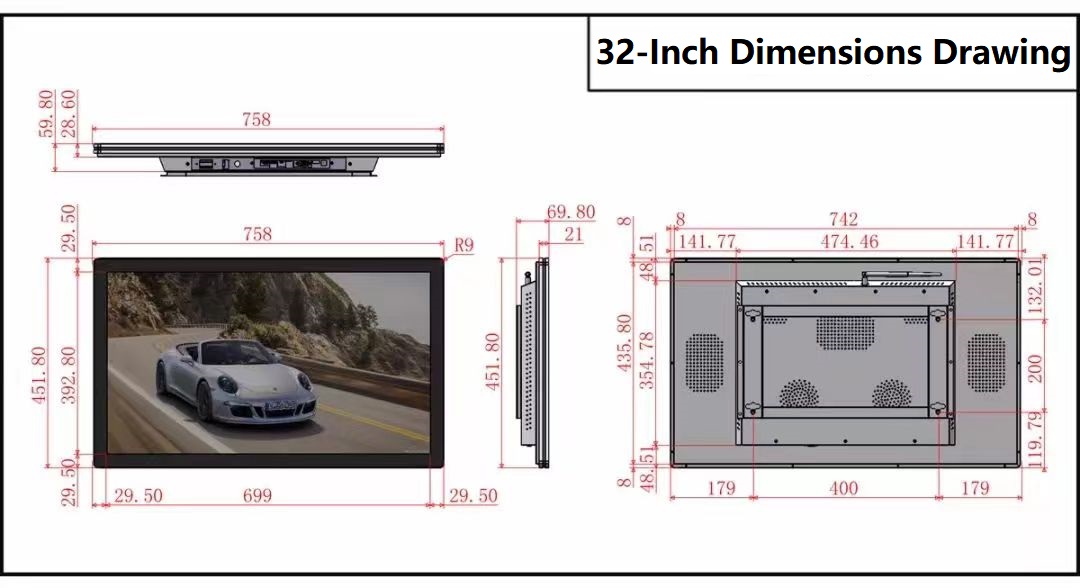

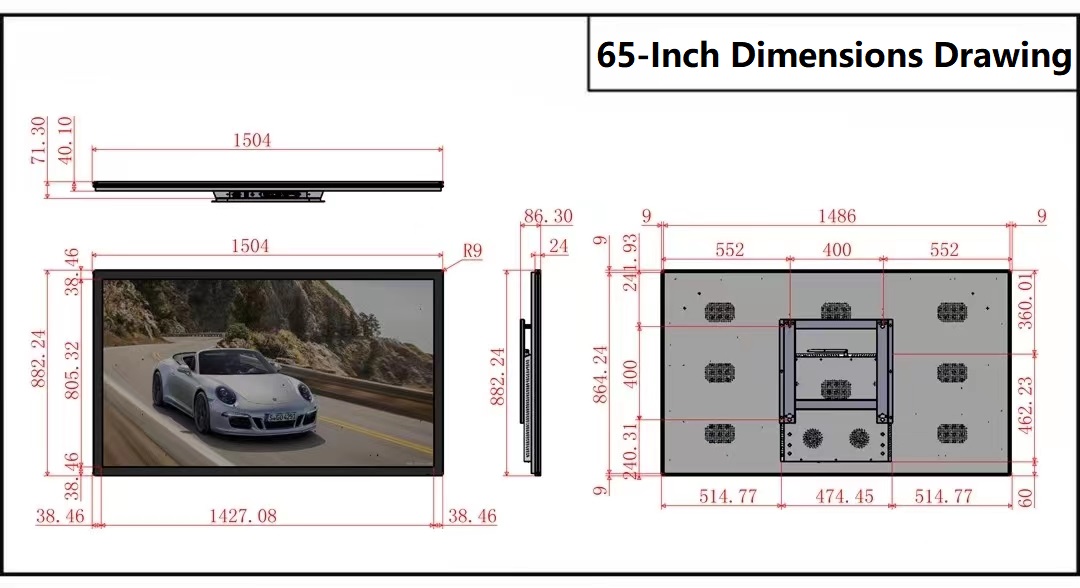

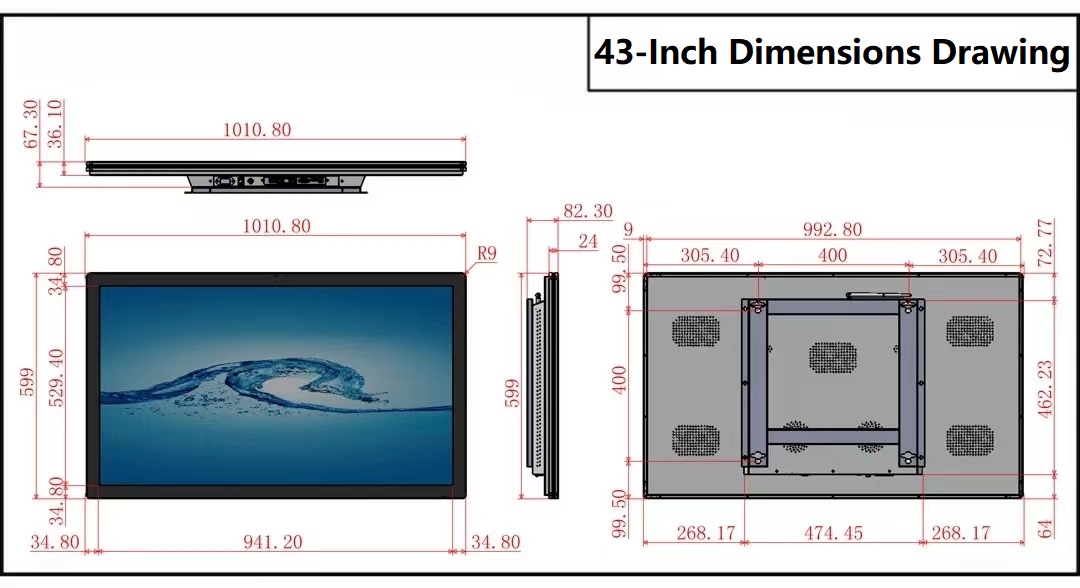

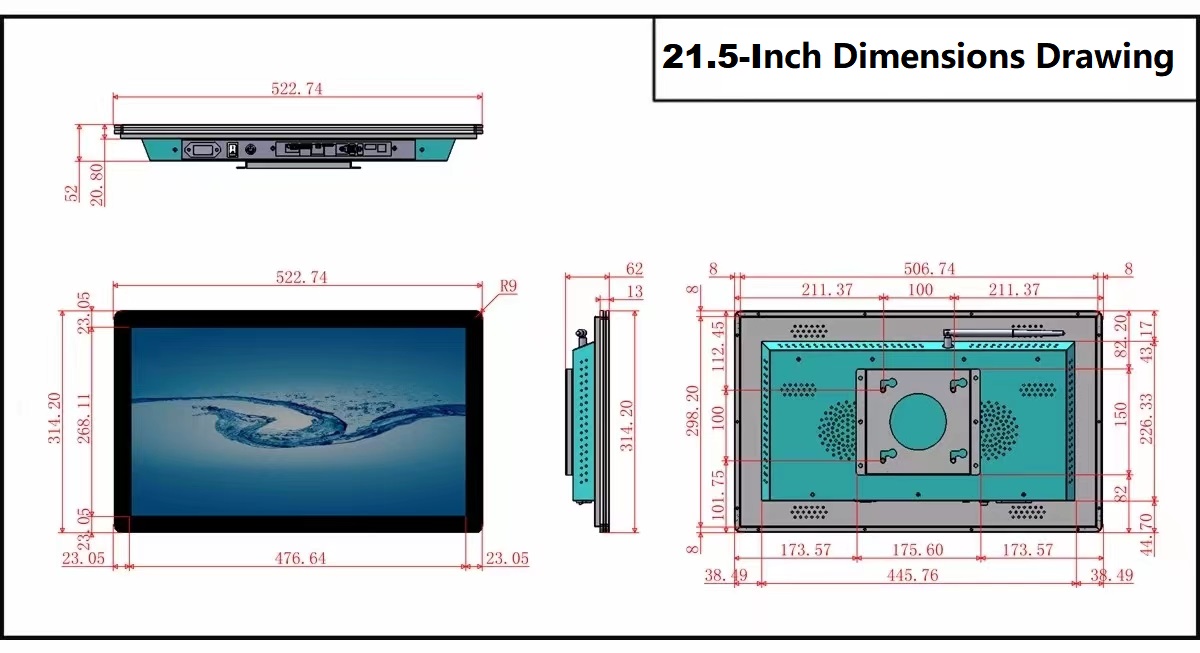

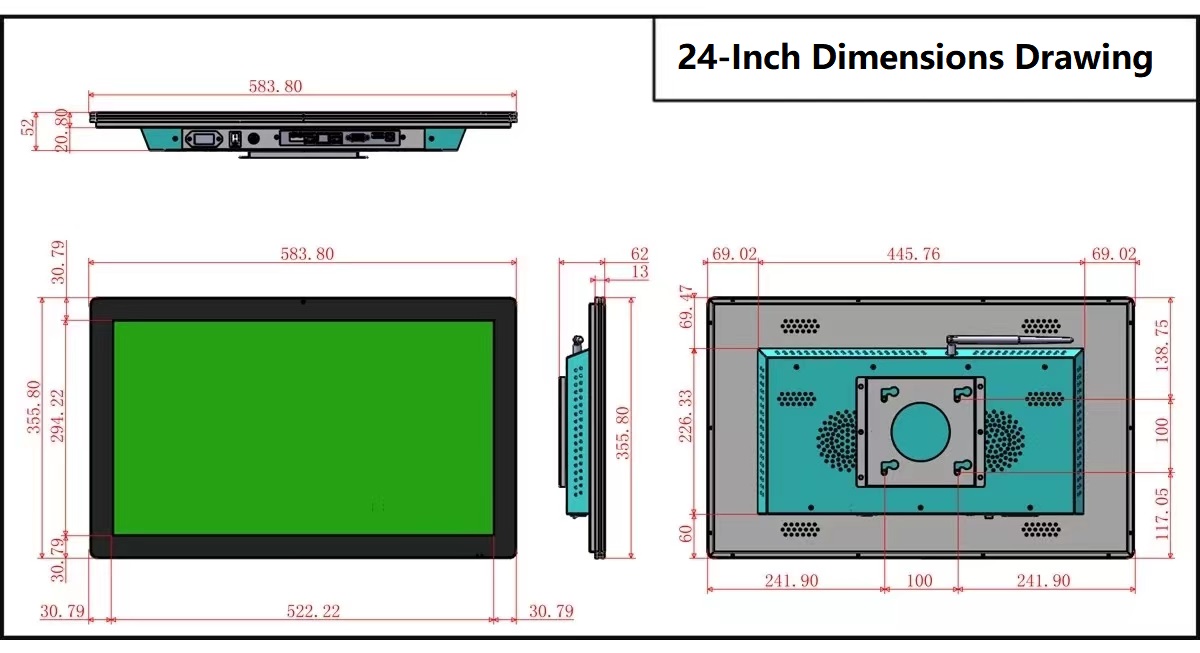

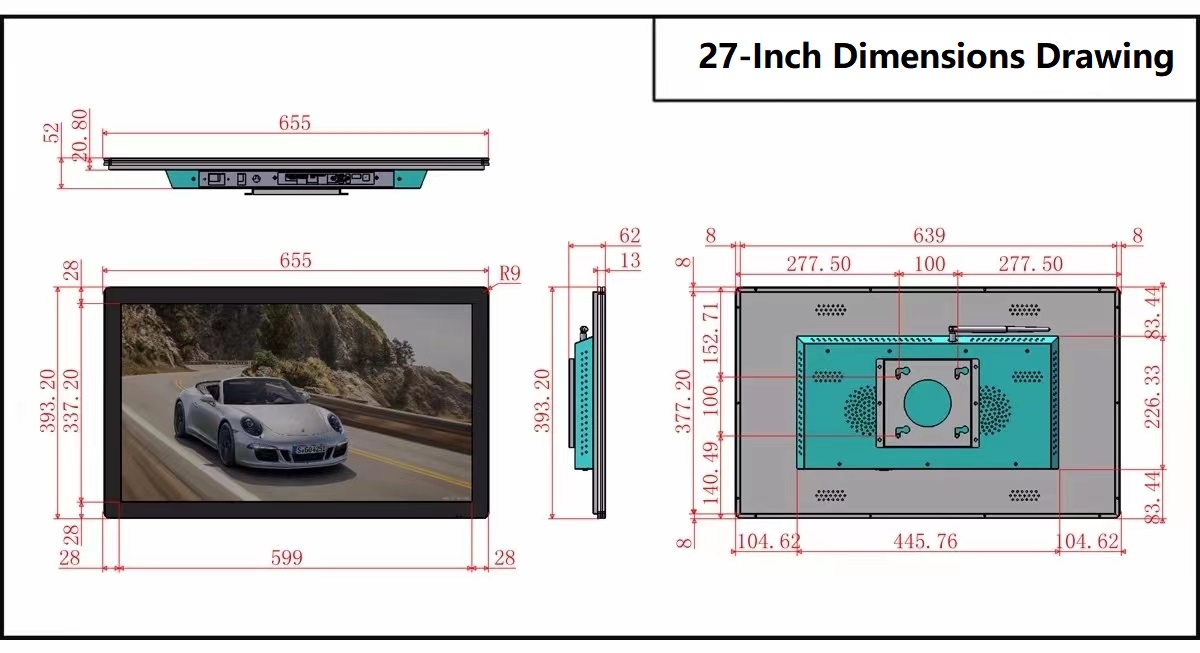

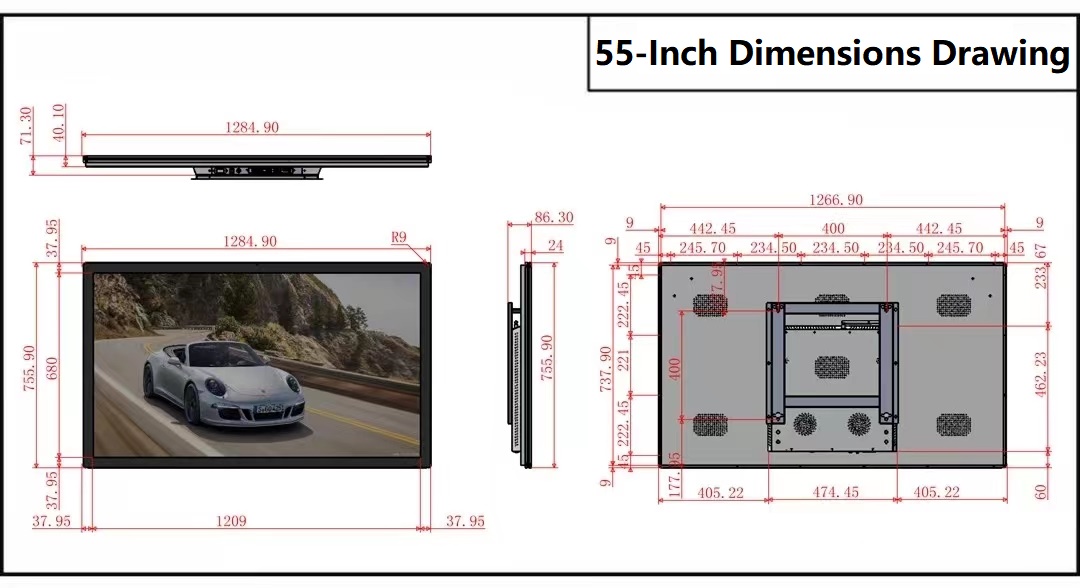

Touch Screen Dimensions
