touch screen,touchscreen monitor,open frame,embedded touch monitor,

Diagonal Size	7-Inch	8.4-Inch	10.1-Inch	12.1-Inch	15-Inch	15.6-Inch	17-Inch	18.5-Inch
Aspect Ratio	16:10	4:3	16:10	4:3	4:3	16:9	4:3	16:9
Resolution	1280 x 800	800 x 600	1280 x 800	1024 x 768	1280x1024	1920x1080	1280x1024	1366 x768
Brightness	300nits	300nits	300nits	300nits	250nits	250nits	250nits	250nits
Contrast Ratio	800:1	500:1	800:1	800:1	700:1	800:1	1000:1	3000:1
Number of Colors	16.7M	16.7M	262K	16.2 M	16.7M	16.7M	16.7M	16.7M
Viewing Angle	85/85°/85/85°	70/70°/60/70°	85/85°/85/85°	85/85°/80/80°	85/85°/80/80°	85/85/85/85	85/85°/80/80°	89/89°/89/89°
Active Area	5.88"x3.68"	6.69"x5.02"	8.52"x5.33"	9.66"x7.24"	11.97"x8.98"	13.3"x10.64"	13.3"x10.64"	16.1"x9.05"
Surface Treatment	Regular/AG/AF/AR Coating
Touch Technology	ITO Two-glass Projective Capacitive Multi-Touch Or No-Touch
Touch Interfaces	USB
Touch Lifetime	>300,000,000 times
Privacy Film	No (default). Left/Right 30° Angle Privacy Film (optional)
Hand writing	Finger writing (default), Capaciive Stylus writing
Power Supply	Internal/Outernal AC
I/O Ports	Input: AC power, HDMI, VGA, USB type B, Audio Line In; Output: Headphone Out
Input Video Format	HDMI, VGA
MTBF	50,000 hours demonstrated
Input Voltage	DC 12V +/- 5%
Mounting Options	VESA hole Mount per MIS-F
Operating Temp.	0° C to 50° C
Storage Temp.	-20°C to 60°C
Anti-Vibration	5-19Hz/1.0mm Vibration; 19-200Hz/ 1.0g accelerated velocity
Impact Resistance	10G accelerated velocity
Warranty	3-Year Optional

Diagonal Size	19-Inch	21.5-Inch	24-Inch	27-Inch	32-Inch	43-Inch	55-Inch	65-Inch
Aspect Ratio	5:4	16:9	16:9	16:9	16:9	16:9	16:9	16:9
Resolution	1280 x1024	1920 x1080	1920 x1080	1920 x1080	1280x1024	1920x1080	3840x2160	3840*2160
Brightness	250nits	250nits	250nits	250nits	300nits	250nits	400nits	350nits
Contrast Ratio	1000:1	3000:1	3000:1	3000:1	3000:1	4000:1	4000:1	1200:1
Number of Colors	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
Viewing Angle	85/85/80/80	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Active Area	14.8"x11.9"	18.74"x10.54"	23.54"x13.24"	23.54"x13.24"	27.49"x15.47"	36.98"x20.80"	47.54"x26.74"	56.24"x31.63"
Surface Treatment	Regular/AG/AF/AR Coating
Touch Technology	ITO Two-glass Projective Capacitive Multi-Touch Or No-Touch
Touch Interfaces	USB
Touch Lifetime	>300,000,000 times
Privacy Film	No (default). Left/Right 30° Angle Privacy Film (optional)
Hand writing	Finger writing (default), Capaciive Stylus writing
Power Supply	Internal/Outernal AC
I/O Ports	Input: AC power, HDMI, VGA, USB type B, Audio Line In; Output: Headphone Out
Input Video Format	HDMI, VGA
MTBF	50,000 hours demonstrated
Input Voltage	DC 12V +/- 5% (Or AC 100-240V, 50/60Hz, for 32" and up)
Mounting Options	VESA hole Mount per MIS-F
Operating Temp.	0° C to 50° C
Storage Temp.	-20°C to 60°C
Anti-Vibration	5-19Hz/1.0mm Vibration; 19-200Hz/ 1.0g accelerated velocity
Impact Resistance	10G accelerated velocity
Warranty	3-Year Optional

Embedded touch screen monitors from 10 to 32-inches are available as standard screen sizes.

Please get touch with GDT sales ask for products information.

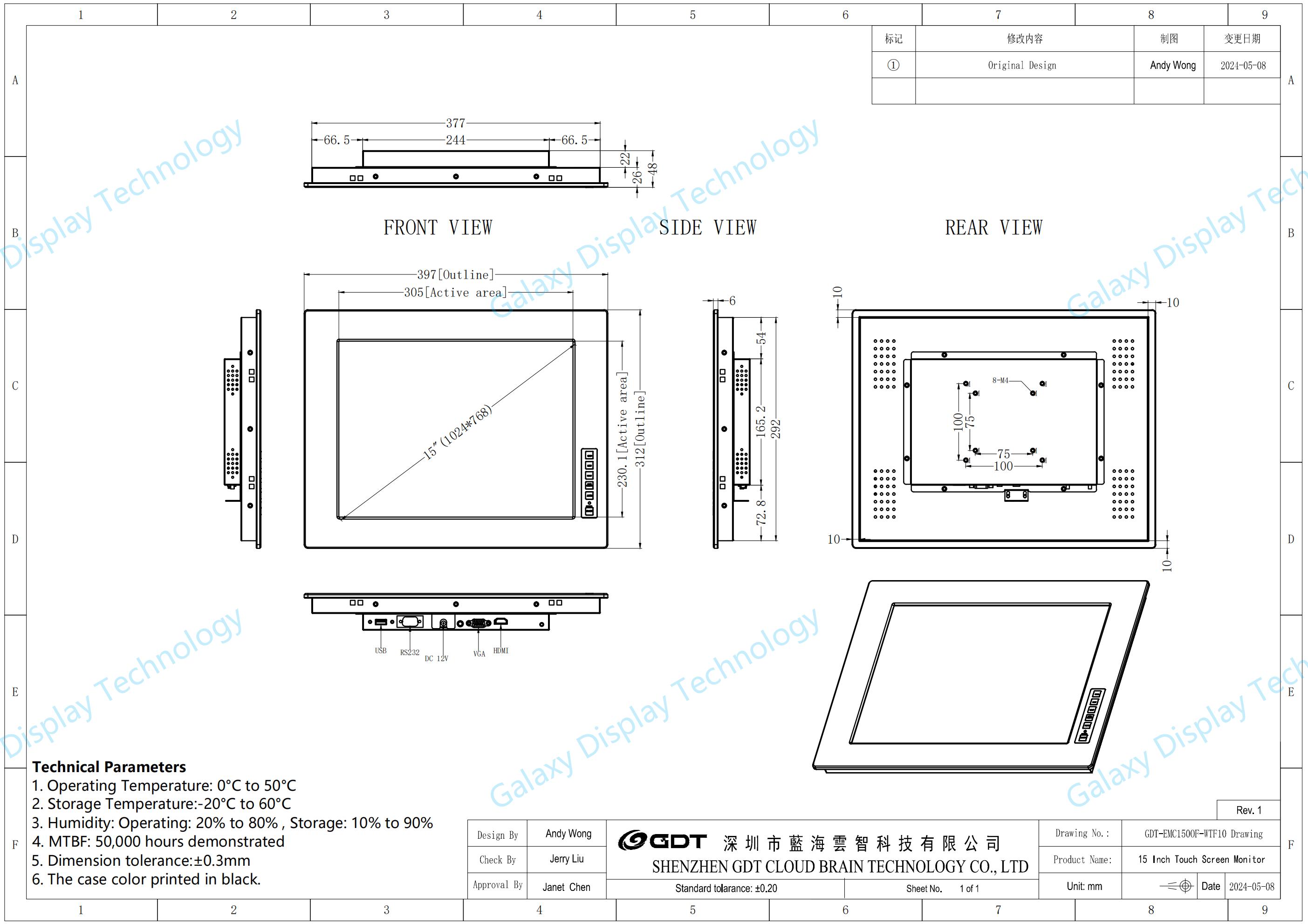

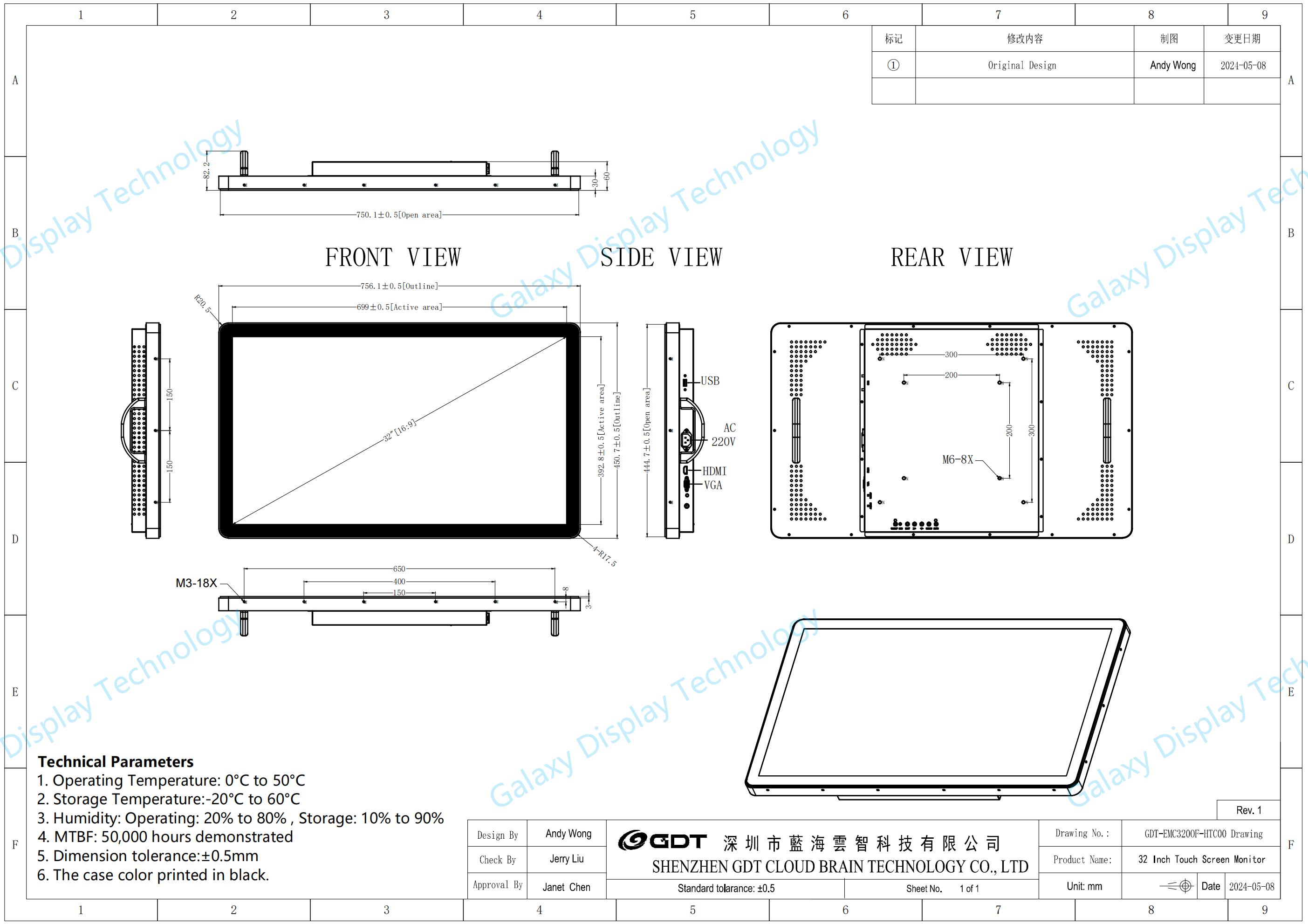

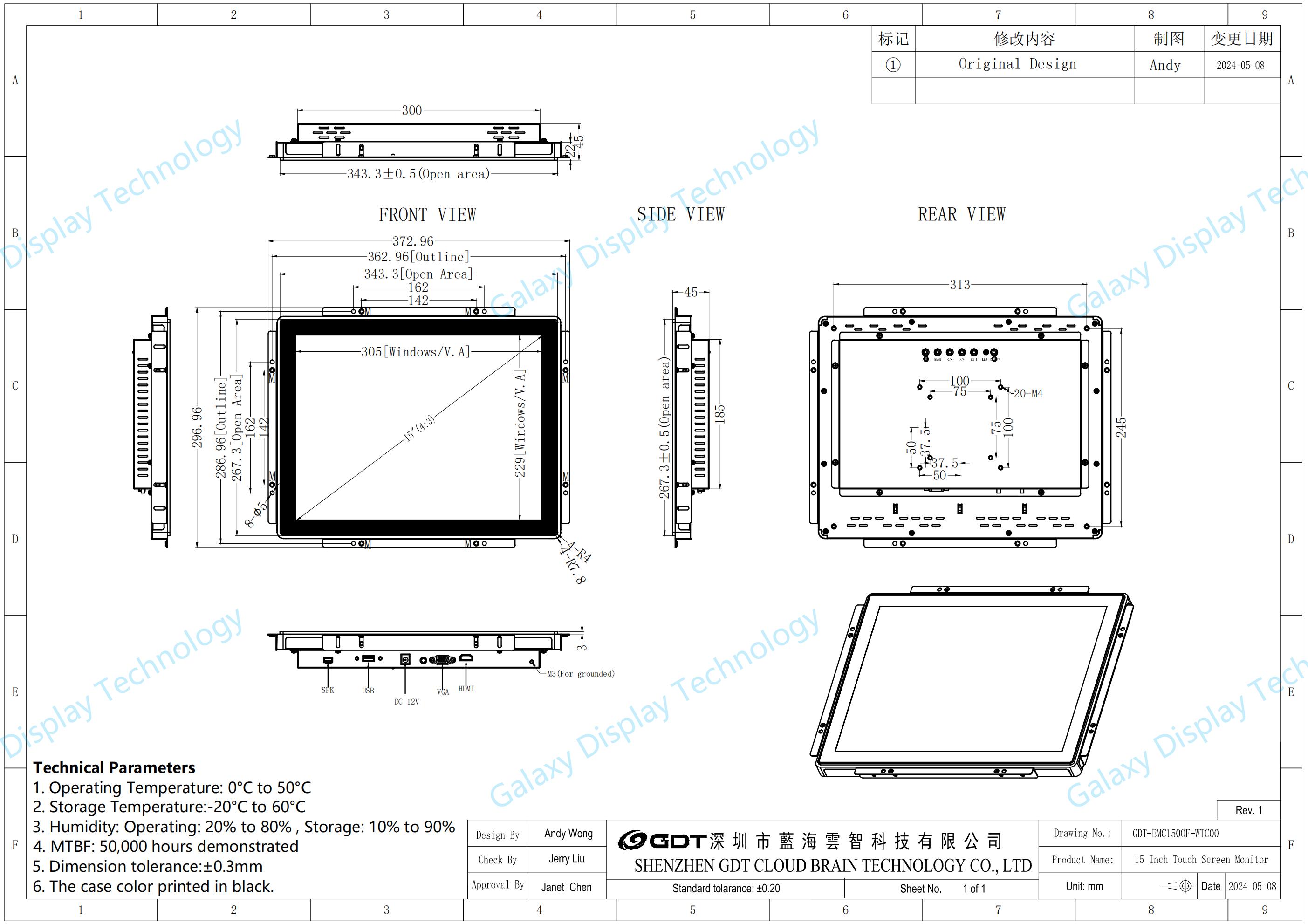

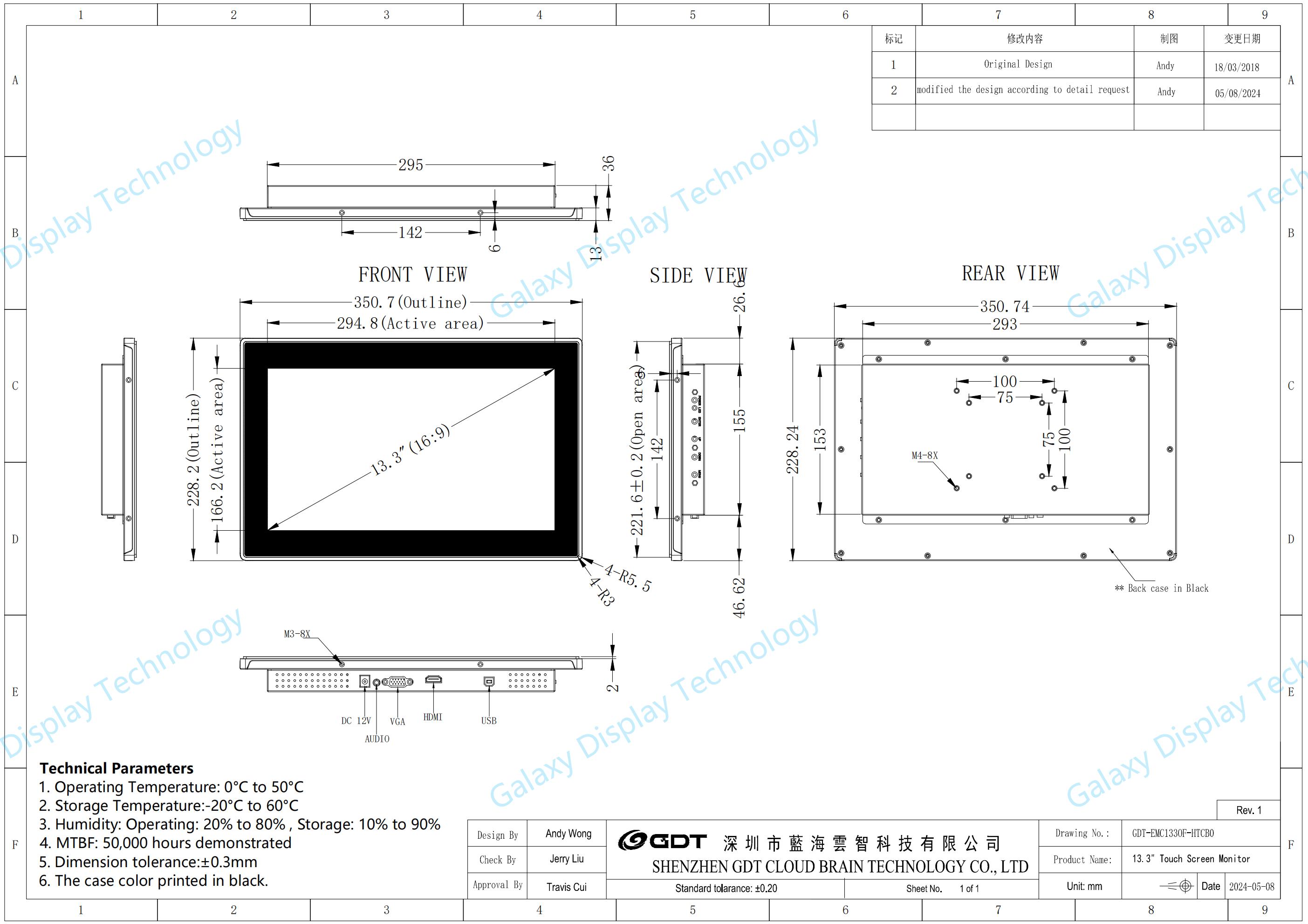

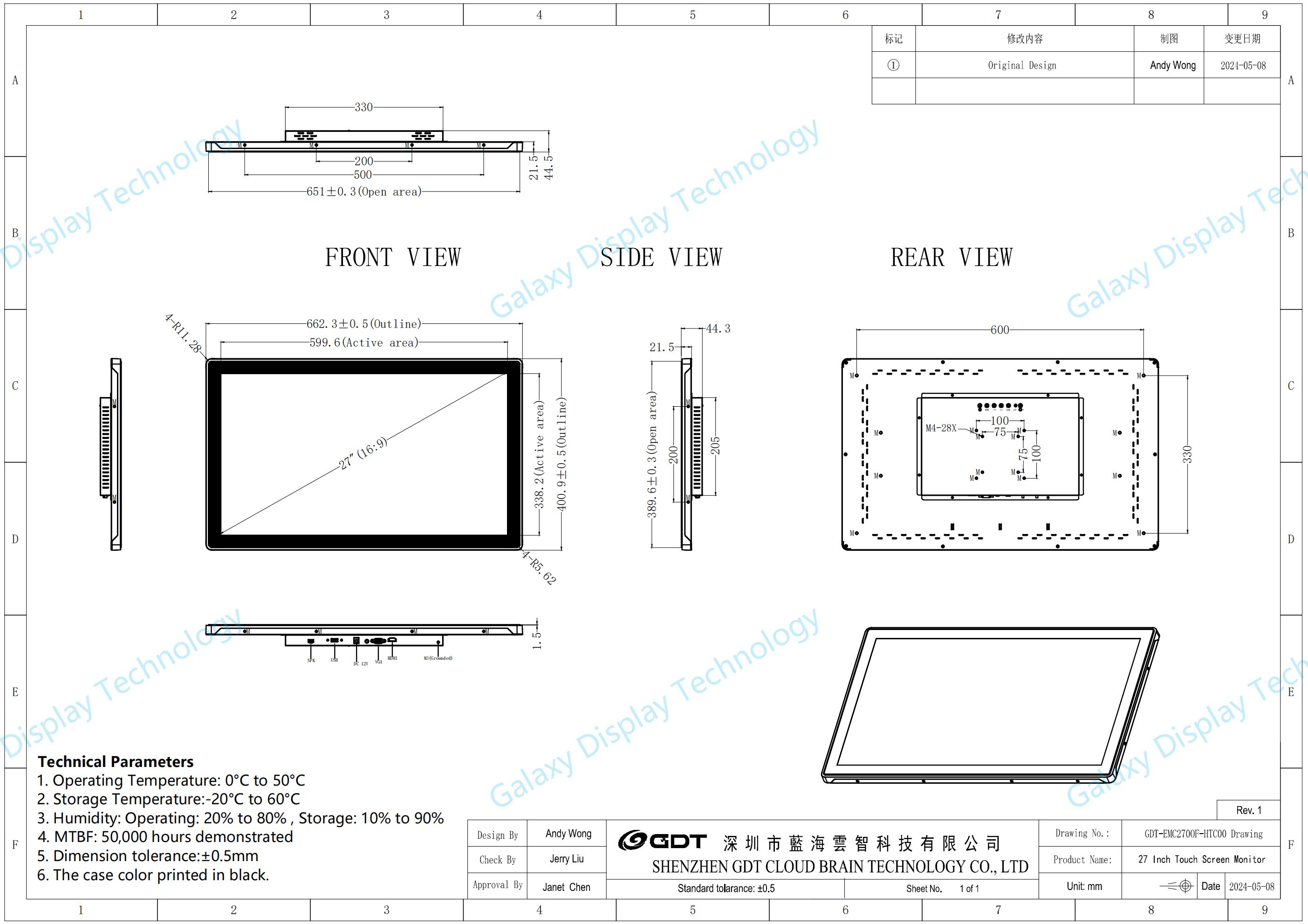

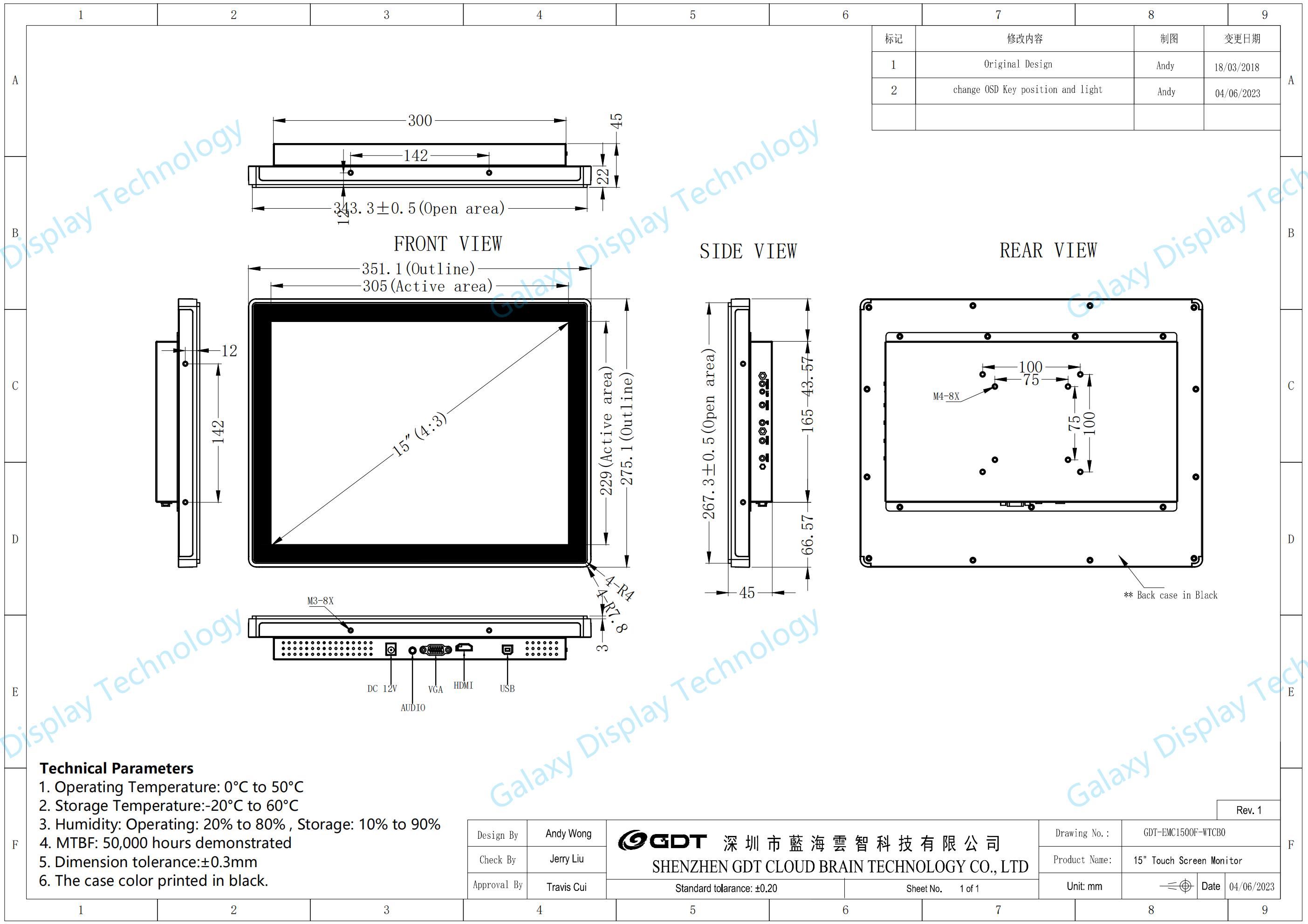

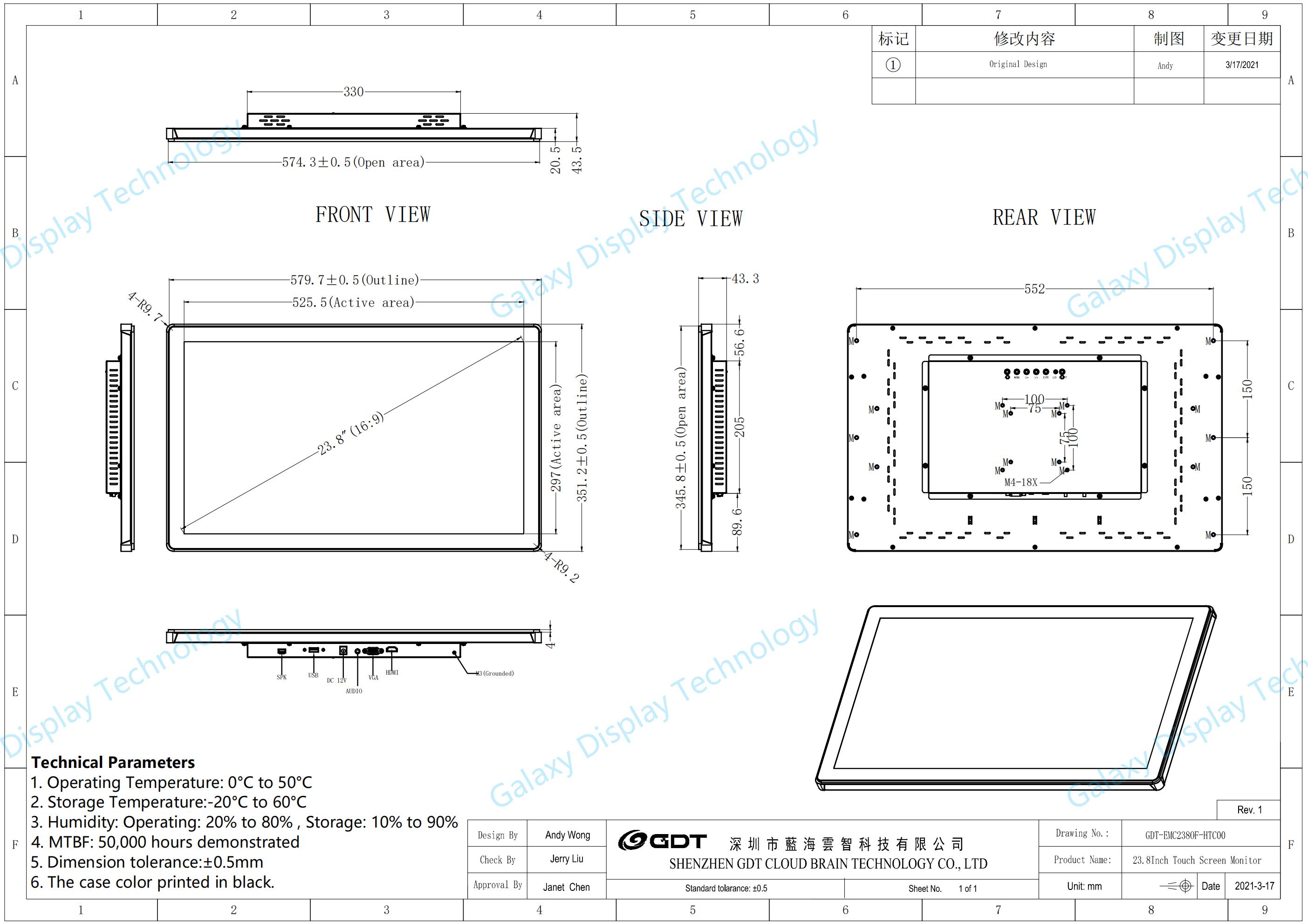

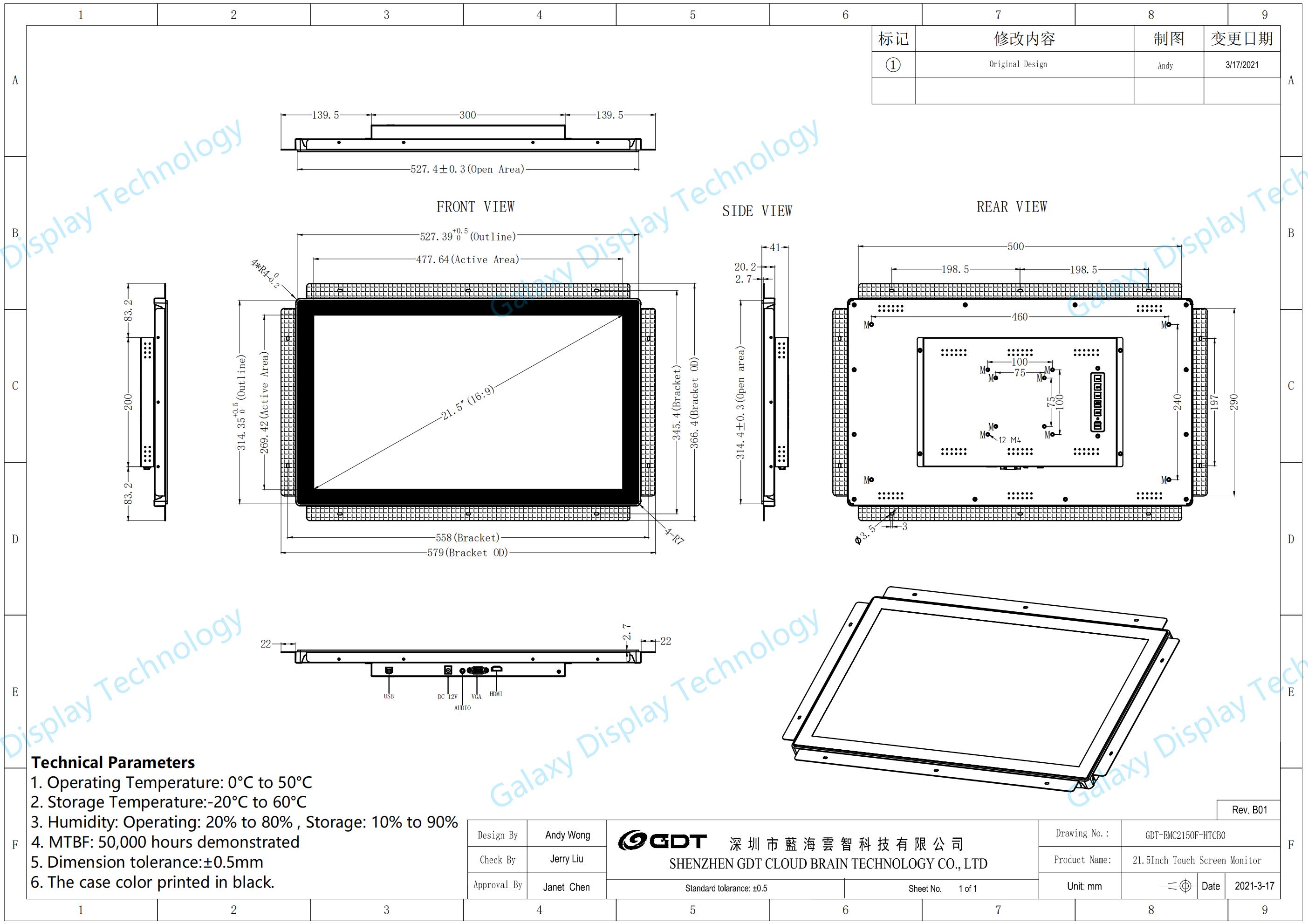

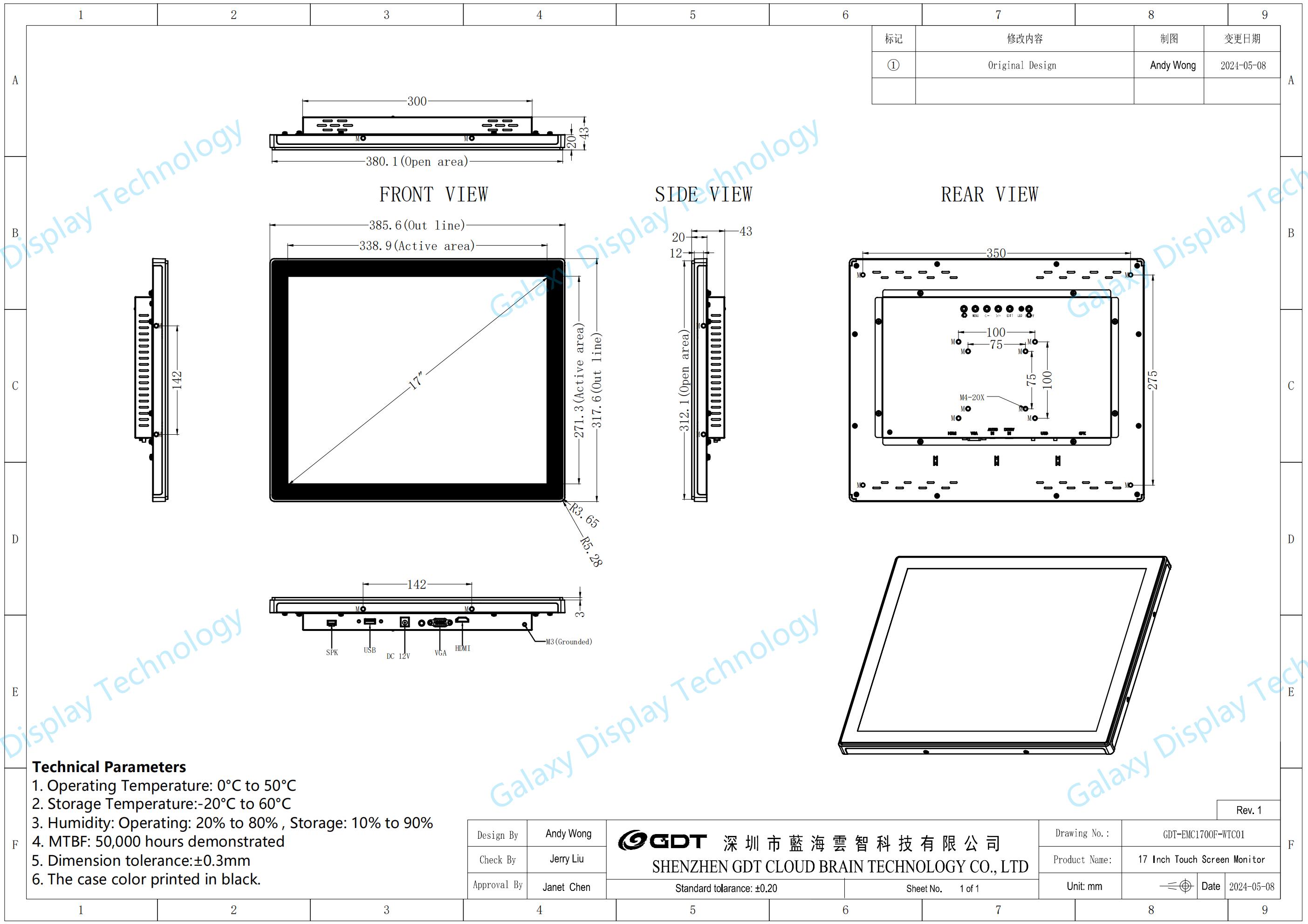

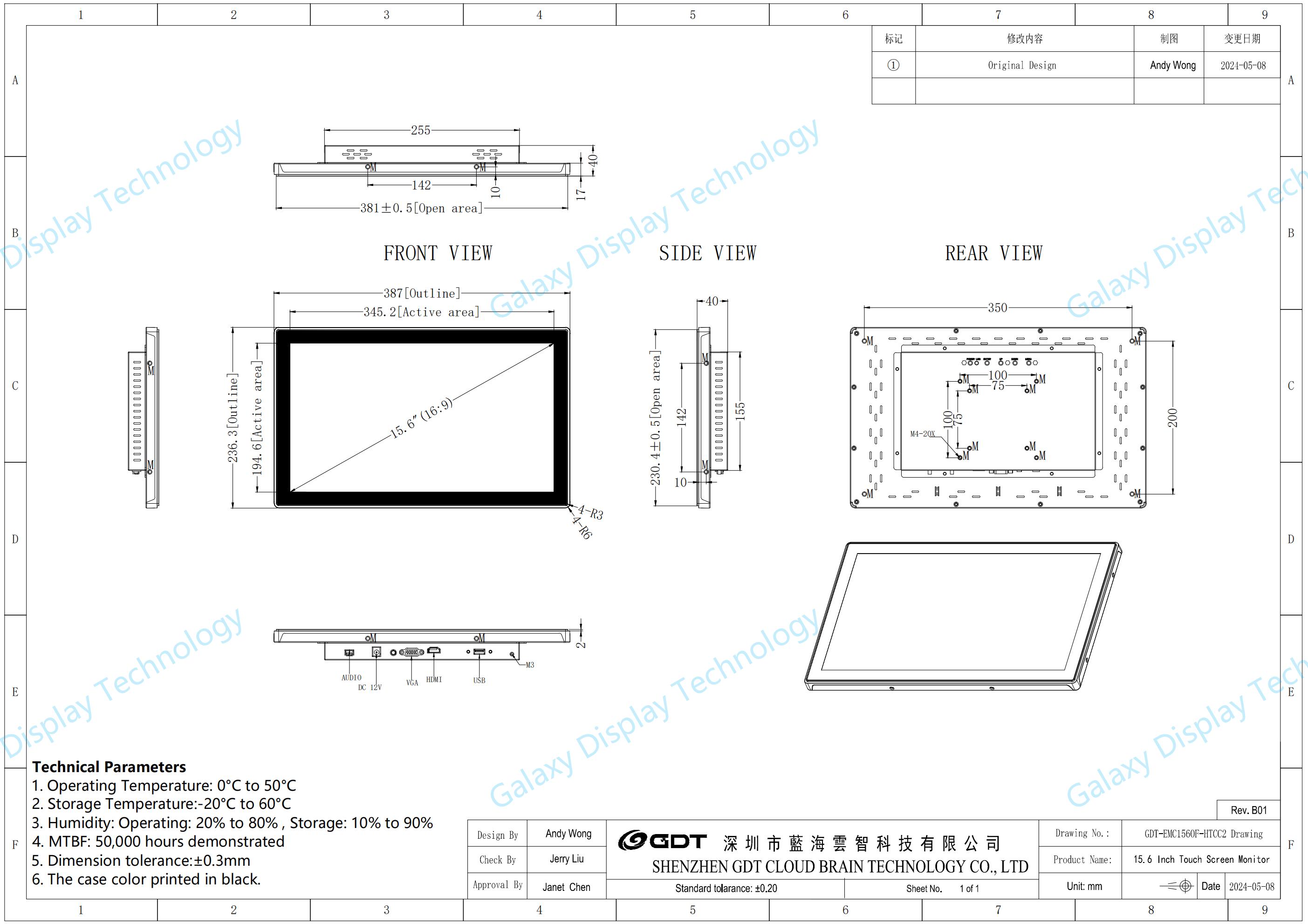

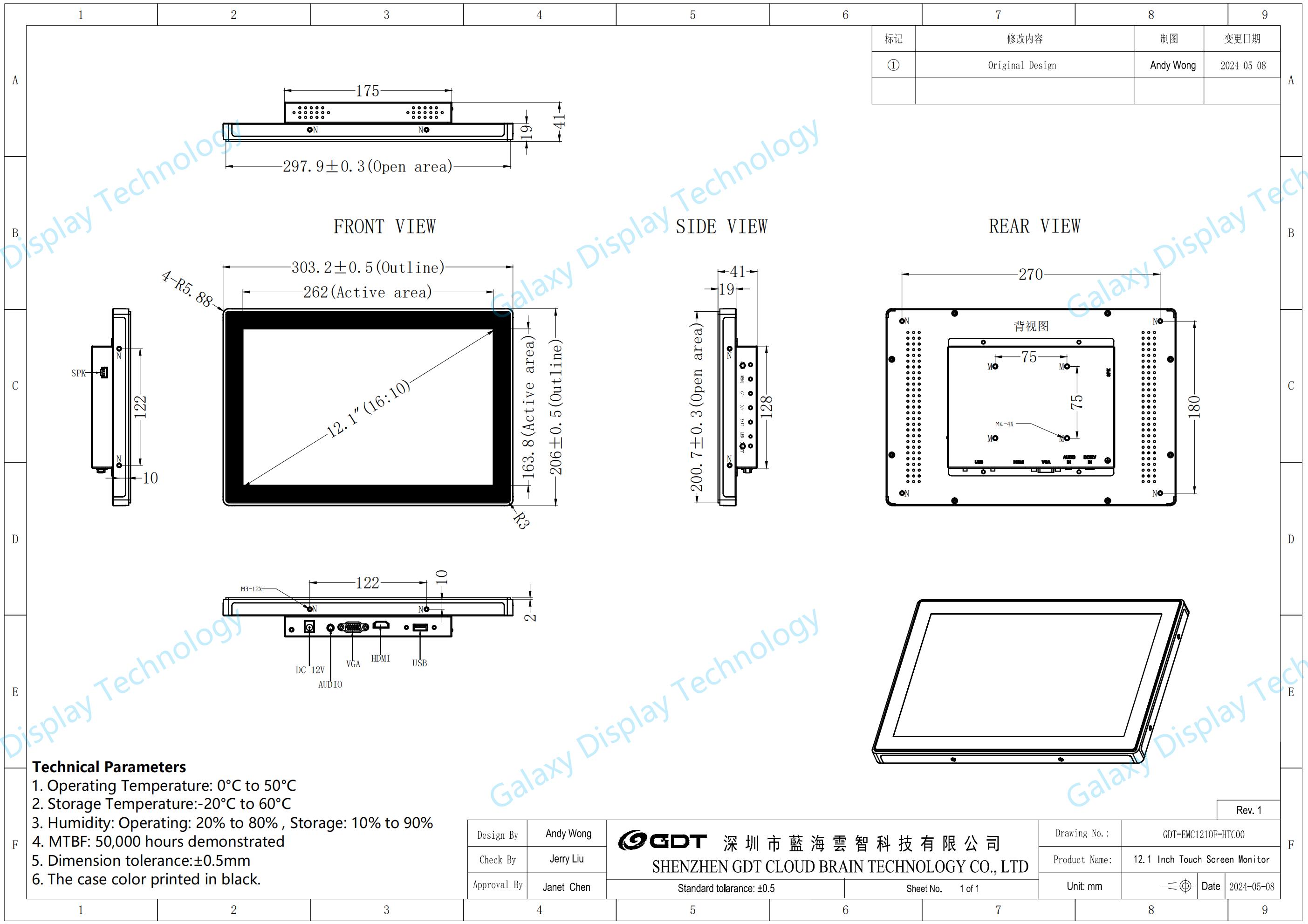

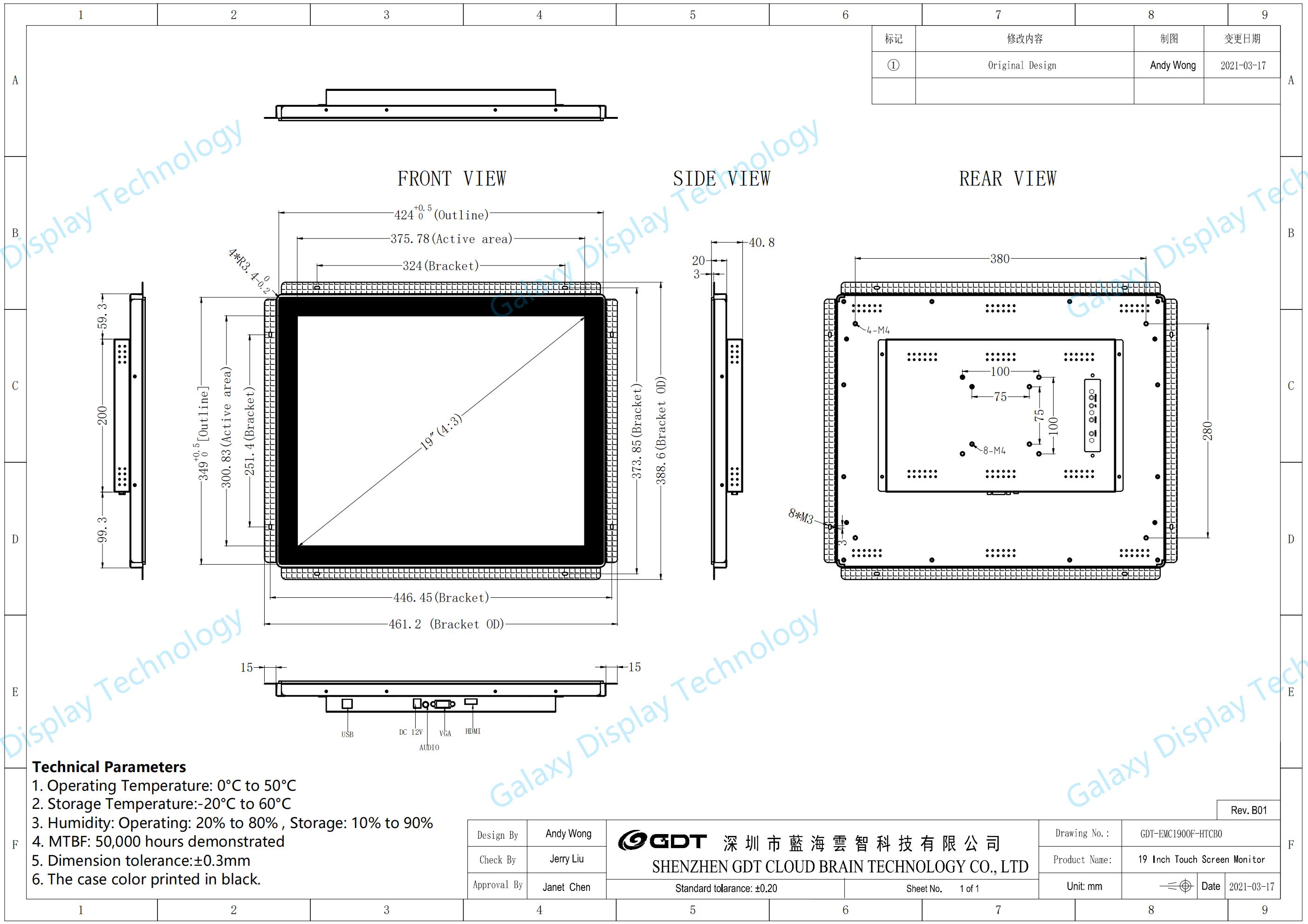

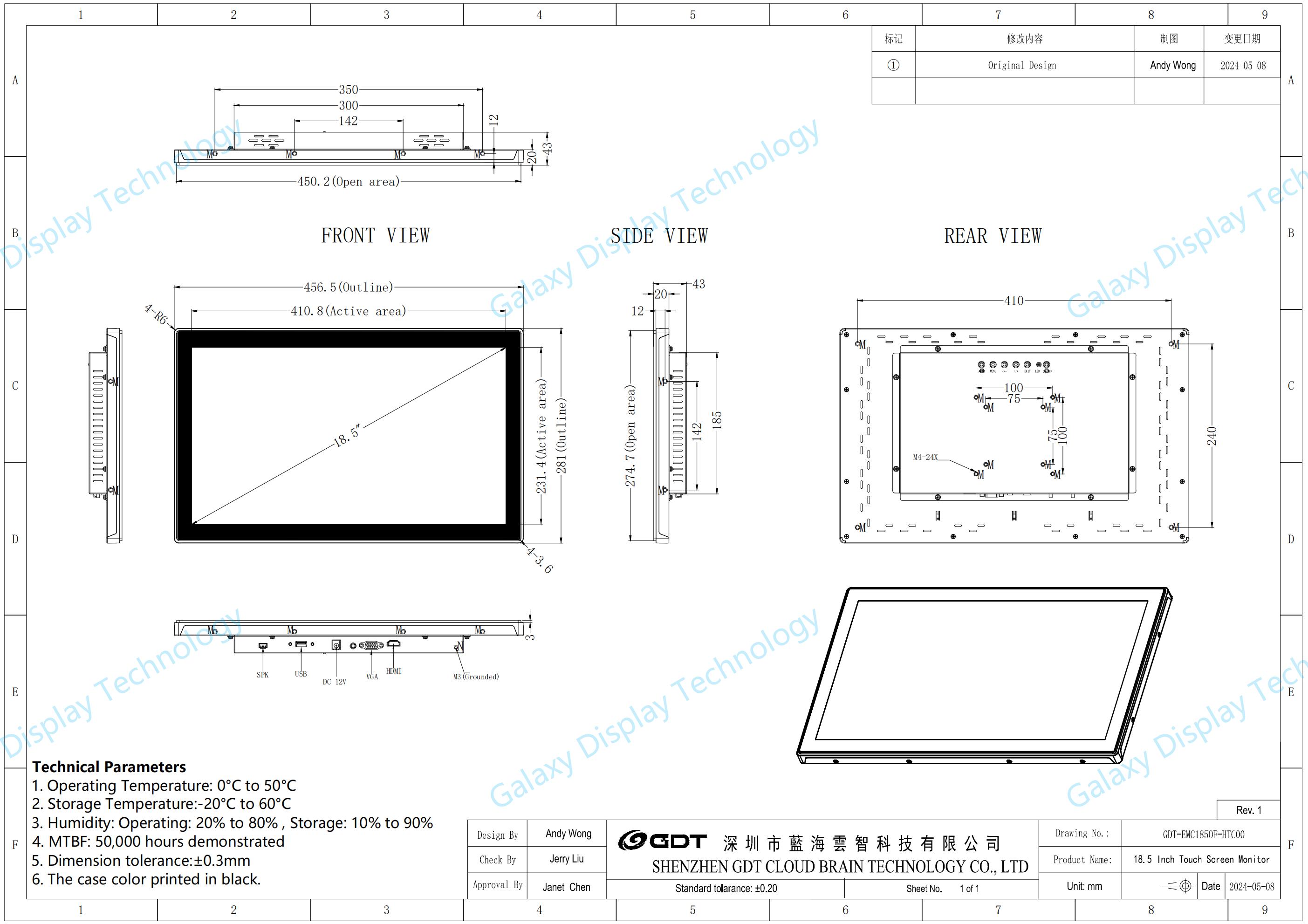

Touch Screen Dimensions

Touchscreens Monitors
